  1. Home
  2. /Technologies
  3. /Applied Materials Endura PVD

ULTRA-HIGH-VACUUM PVD METALLIZATION

Ultra-high-vacuum PVD metallization platform

MULTI-CHAMBER SEQUENCES INCLUDING

Multi-chamber sequences including preclean and integrated film stacks

APPLICATIONS

AI & HPC · Data Center

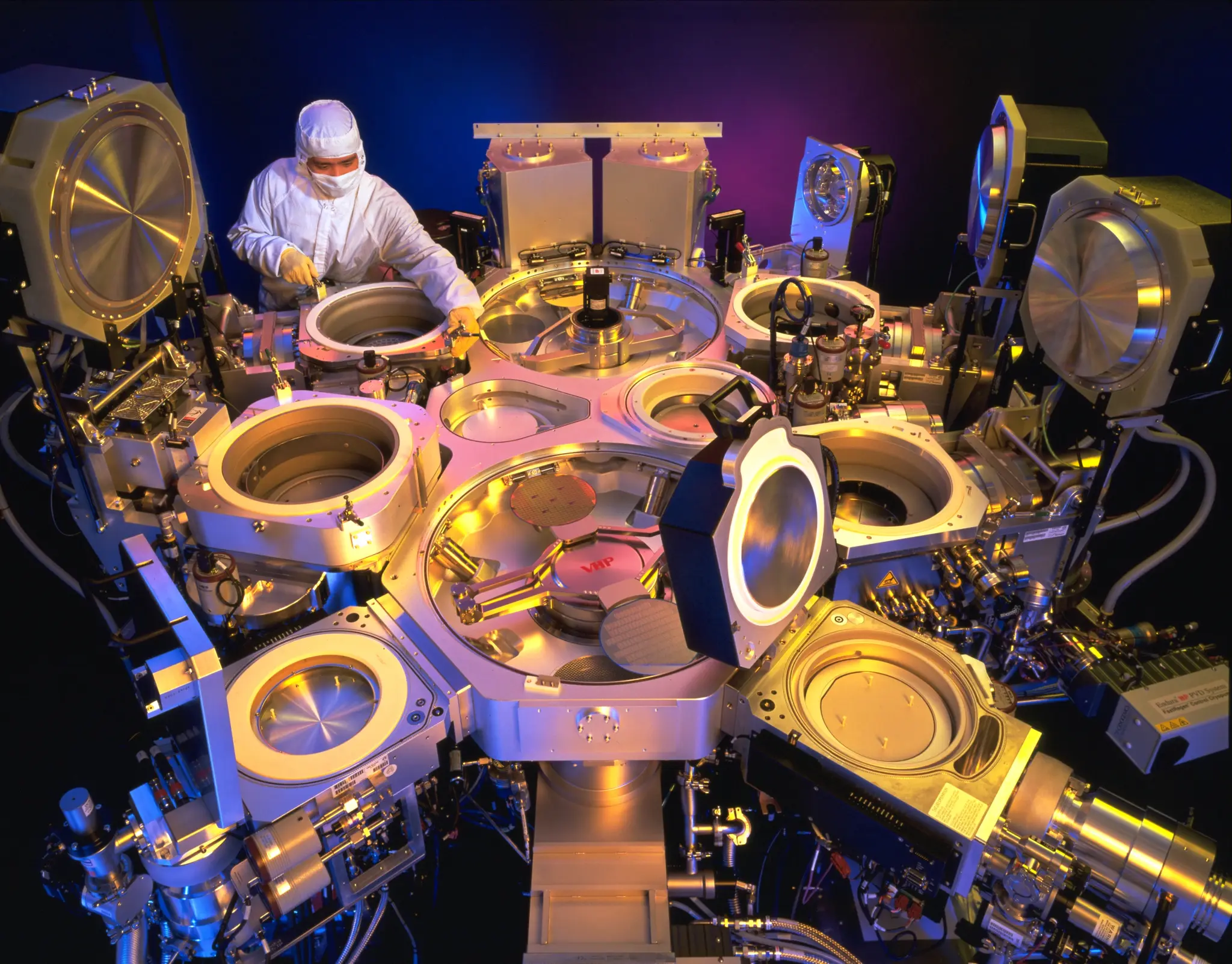

Official technology image

ULTRA-HIGH-VACUUM PVD METALLIZATION

Ultra-high-vacuum PVD metallization platform

MULTI-CHAMBER SEQUENCES INCLUDING

Multi-chamber sequences including preclean and integrated film stacks

APPLICATIONS

AI & HPC · Data Center

Public source

Applied Materials Endura PVD

Manufacturing Equipment

Endura is Applied Materials’ publicly named ultra-high-vacuum metallization platform.

  • AI & HPC
  • Data Center
United StatesView Official Source (opens in a new tab)

Official technology image

Overview

Applied Materials Endura is an ultra-high-vacuum metallization platform used for physical vapor deposition and integrated multi-chamber sequences. Distinct from the Vistara wafer-manufacturing chassis.

Official product pages describe Endura PVD as a multi-chamber system for depositing ultra-pure films used in front-end metallization, aluminum and copper interconnect, and related packaging metallization. The platform can host multiple process and preclean chambers for integrated sequences under vacuum. Endura is a metallization/PVD equipment platform, not the newer Vistara wafer-manufacturing chassis, which is listed separately. Chamber options, film stacks and performance data should be confirmed with Applied Materials.

Capabilities

Key characteristics associated with this technology.

  • Ultra-high-vacuum PVD metallization platform

  • Multi-chamber sequences including preclean and integrated film stacks

  • Described for front-end metallization, interconnect and packaging films

  • Distinct from the separately listed Vistara wafer-manufacturing platform

Organization

Applied Materials

United States

View organization

Official resources

  • Endura PVD | Applied Materialsappliedmaterials.com (opens in a new tab)

Source & disclosure

Independent discovery listing. This profile was prepared from publicly available information published by the organization. For the latest and complete technical information, refer to the official company source.

Official source

appliedmaterials.com (opens in a new tab)

Last source check

Aug 31, 2026
